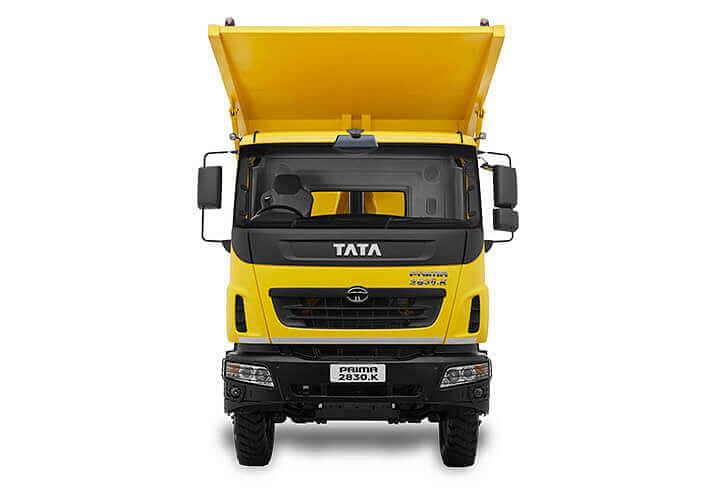

Tata Prima 2830.K

Key Features of Tata Prima 2830.K

• Engine

  Cummins ISBe 6.7L CRDI TCIC
• Power

  300
• GVW

  27600 KG
• Payload Capacity

  17500 KG

Specifications of Tata Prima 2830.K

• Performance
  • GVW
    27600 KG
  • Gradeability
    79 (%)
  • Payload Capacity
    17500 KG
  • Engine Norm
    BS-6
  • Engine Cylinders
    6
  • Power
    300
  • Max Torque
    1100 Nm
  • Engine
    Cummins ISBe 6.7L CRDI TCIC
  • Mileage
    2.5-3.5 KMPL
  • Fuel Tank
    300 Ltrs.

• Dimensions
  • Load Body Size
    16m3
  • Minimum Turning Radius
    17300 MM
  • Wheelbase
    3950 MM

• Brakes Suspension
  • Brakes
    NGT Brakes
  • Rear Axle
    Hub reduction axle with Interaxle and interwheel differential lock & with ABS
  • Parking Brakes
    Yes
  • Front Axle
    Forged I beam reverse elliot type - drop beam
  • Front Suspension
    Parabolic leaf spring
  • Rear Suspension
    TML inverted bogie suspension
  • Abs
    No

• Clutch Transmission
  • Steering
    Power Steering
  • Transmission
    Manual
  • Power Steering
    Yes
  • Gearbox
    9 Forward + 1 Reverse
  • Clutch
    430 dia push type single plate dry friction organic lining

• Body Cabin
  • Body Option
    Customizable
  • Chassis Type
    Chassis with Cabin
  • Seating Capacity
    Driver + 1 Passenger
  • Cabin Type
    Day Cabin
  • Arm Rest
    No
  • Tiltable Steering
    Yes
  • Tiltable Cabin
    Yes

• Tyre
  • Front Tyre
    11x20 18 PR Mining
  • Rear Tyre
    11x20 18 PR Mining
  • Tubeless Tyre
    No

• Others
  • Seat Belts
    Yes
  • Seat Type
    Standard
  • Hill Hold
    No
  • Fog Lights
    No
  • Driver Info Display
    Yes
  • Air Condition
    No
  • Adjustable Driver Seat
    Yes
  • Navigation System
    No
  • Telematics
    No
  • Cruise Control
    No
