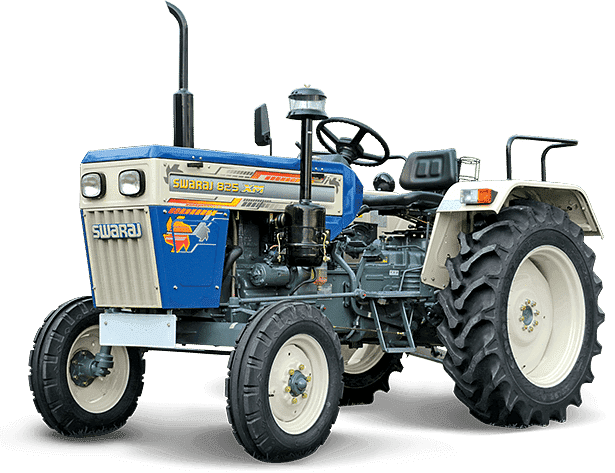

Swaraj 825 XM

Key Features of Swaraj 825 XM

• No. Of Cylinder

  1
• Power

  30
• Capacity (cc)

  1538 CC
• PTO Power

  21.3
• Fuel Tank Capacity

  60 litre
• Lifting Capacity

  1000 Kg
• Wheel Drive

  2 WD

Specifications of Swaraj 825 XM

• Engine
  • Power
    30
  • No. Of Cylinder
    1
  • Cooling Type
    Water Cooled
  • Engine Rated RPM
    1650 RPM
  • Air Filter
    3- Stage Oil Bath Type
  • Capacity (cc)
    1538 CC

• Power Take Off (PTO) & Steering
  • PTO RPM
    540 / 1000
  • Steering Column
    Single Drop Arm
  • PTO Power
    21.3

• Transmission
  • Battery
    12 V 88 Ah
  • Gear Box
    8 Forward + 2 Reverse
  • Clutch Type
    Single dry disc friction plate clutch
  • Forward Speed
    3.3 - 26.4 kmph
  • Reverse Speed
    2.9 - 9.6 kmph
  • Alternator
    starter motor

• Hydraulics & Brakes
  • Lifting Capacity
    1000 Kg
  • Brakes
    Dry Disc Brakes
  • 3 point Linkage
    Automatic Depth and Draft Control, I and II type implement pins.

• Dimension & Capacity
  • Overall Width
    1690 MM
  • Overall Length
    3260 MM
  • Ground Clearance
    400 MM
  • Fuel Tank Capacity
    60 litre
  • Wheel Base
    1930 MM
  • Total Weight
    1870 KG

• Wheels & Tyres
  • Front Tyre Size
    6.00 x 16
  • Wheel Drive
    2 WD
  • Read Tyre Size
    12.4 x 28

• Others
  • Warranty
    2000 Hours Or 2 Year
  • Accessories
    TOOLS, BUMPER, Ballast Weight, TOP LINK, CANOPY, DRAWBAR, HITCH
