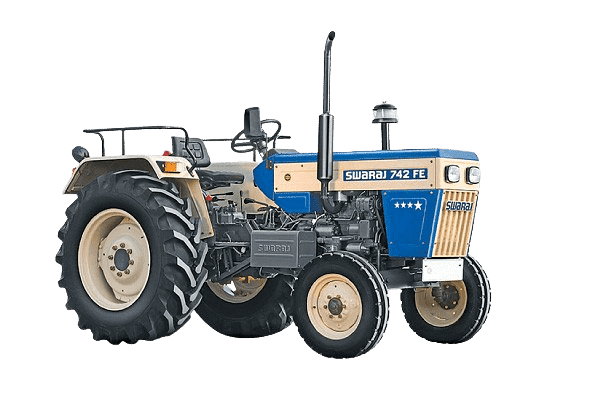

Swaraj 742 FE

Key Features of Swaraj 742 FE

• No. Of Cylinder

  3
• Power

  42
• PTO Power

  35.7
• Fuel Tank Capacity

  60 litre
• Lifting Capacity

  1700 Kg.
• Wheel Drive

  2 WD

Specifications of Swaraj 742 FE

• Engine
  • No. Of Cylinder
    3
  • Engine Rated RPM
    2000 RPM
  • Cooling Type
    Water Cooled
  • Power
    42
  • Air Filter
    3 - stage oil bath type

• Power Take Off (PTO) & Steering
  • PTO Power
    35.7
  • Steering Column
    Single Drop Arm
  • PTO RPM
    540 RPM @ 1650 ERPM

• Transmission
  • Gear Box
    8 Forward + 2 Reverse
  • Battery
    12 V 88 Ah
  • Forward Speed
    2.9 - 29.21 kmph
  • Reverse Speed
    3.44 - 11.29 kmph
  • Clutch Type
    Single / Dual clutch
  • Alternator
    starter motor

• Hydraulics & Brakes
  • Brakes
    Oil immersed Brakes
  • Lifting Capacity
    1700 Kg.
  • 3 point Linkage
    Auto Draft & Depth Control (ADDC), I & II type implement pins

• Dimension & Capacity
  • Total Weight
    2020 KG
  • Overall Width
    1720 MM
  • Overall Length
    3450 MM
  • Fuel Tank Capacity
    60 litre
  • Ground Clearance
    422 MM
  • Wheel Base
    1945 MM

• Wheels & Tyres
  • Front Tyre Size
    6.00 x 16
  • Read Tyre Size
    13.6 X 28
  • Wheel Drive
    2 WD

• Others
  • Accessories
    Tool, Toplink, Canopy, Hook, Bumper, Drawbar
  • Warranty
    2000 Hour or 2 Year
