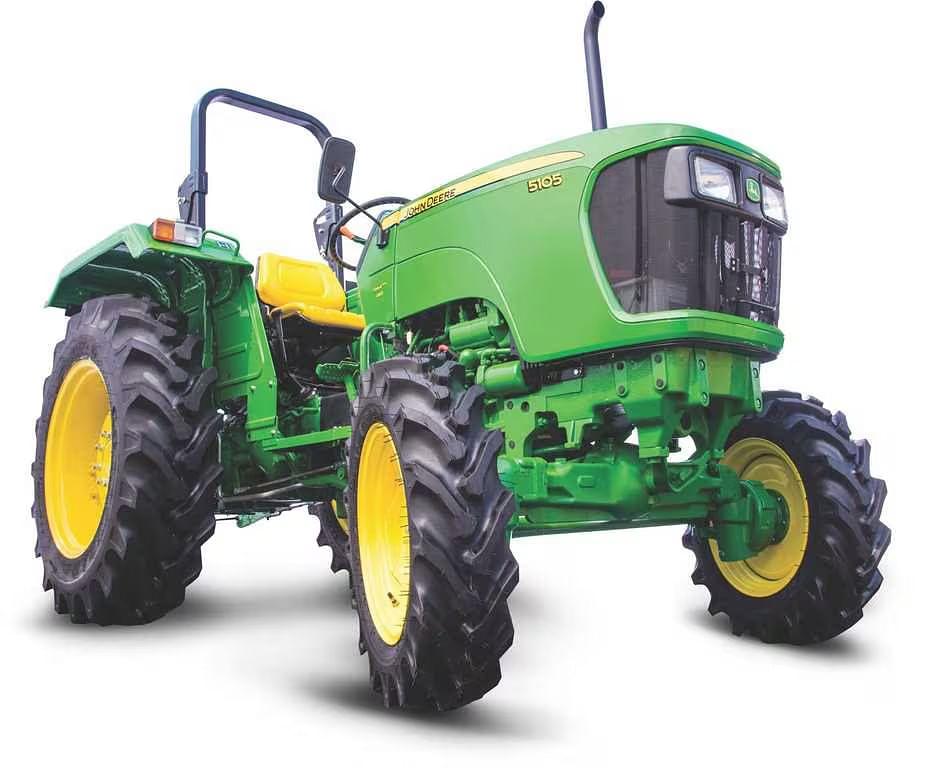

John Deere 5105 4WD

45 reviews

Rate this tractor

John Deere 5105 4WD is a powerful tractors comes with an attractive design and features. John Deere 5105 4WD comes with a 40HP powered by 2900 CC and 3 cylinder engine, having a lifting capacity 1600 Kgf and provides high performance on the field.

Price Coming Soon^*

^*Prices are subjected to change

EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of John Deere 5105 4WD

No. Of Cylinder
3
Power
40
Capacity (cc)
2900 CC
PTO Power
34.4
Fuel Tank Capacity
60 litre
Lifting Capacity
1600 Kgf
Wheel Drive
4 WD

Specifications of John Deere 5105 4WD

Engine
- Power
  40
- Engine Rated RPM
  2100 RPM
- Cooling Type
  Coolant cooled
- No. Of Cylinder
  3
- Air Filter
  Dry Type, Dual Element
- Capacity (cc)
  2900 CC
Power Take Off (PTO) & Steering
- PTO Power
  34.4
- PTO RPM
  540 @ 2100 ERPM
Transmission
- Forward Speed
  2.84 - 31.70 kmph
- Reverse Speed
  3.74 - 13.52 kmph
- Gear Box
  8 Forward + 4 Reverse
- Clutch Type
  Single/Dual
Hydraulics & Brakes
- Lifting Capacity
  1600 Kgf
- 3 point Linkage
  Category - II
- Brakes
  Oil Immersed Disc Brakes
Dimension & Capacity
- Overall Length
  3410 MM
- Fuel Tank Capacity
  60 litre
- Wheel Base
  1970 MM
- Total Weight
  1810 KG
Wheels & Tyres
- Front Tyre Size
  8.0 x 18
- Wheel Drive
  4 WD
- Read Tyre Size
  13.6 X 28
