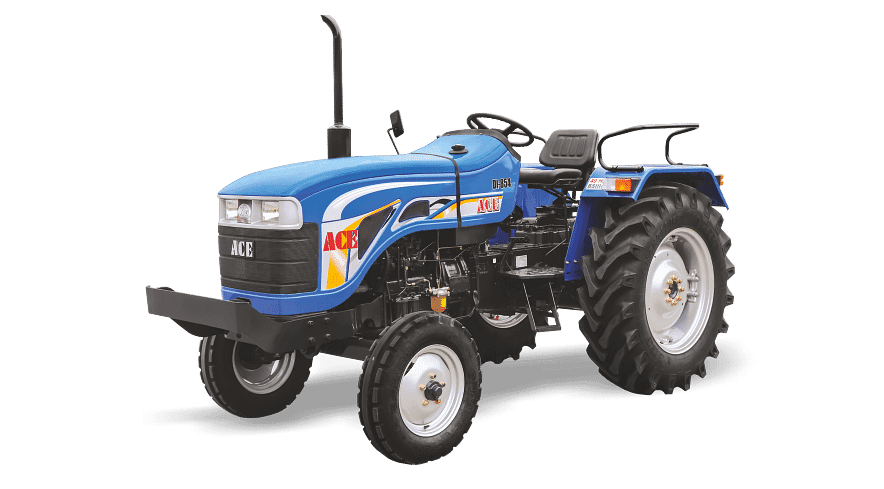

ACE DI-854 NG

45 reviews

Rate this tractor

ACE DI-854 NG is a powerful tractors comes with an attractive design and features. ACE DI-854 NG comes with a 32HP powered by 2858 CC and 3 cylinder engine, having a lifting capacity 1200 Kg and provides high performance on the field.

₹5.1 Lakh^*

^*Prices are subjected to change

EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of ACE DI-854 NG

No. Of Cylinder
3
Power
32
Capacity (cc)
2858 CC
PTO Power
27.2
Fuel Tank Capacity
57 litre
Lifting Capacity
1200 Kg
Wheel Drive
2 WD

Specifications of ACE DI-854 NG

Engine
- No. Of Cylinder
  3
- Capacity (cc)
  2858 CC
- Cooling Type
  Water Cooled
- Air Filter
  Dry Air Cleaner With Cooling Sensor
- Engine Rated RPM
  1800 RPM
- Power
  32
- Torque
  155
Power Take Off (PTO) & Steering
- PTO RPM
  540
- PTO Power
  27.2
Transmission
- Gear Box
  8 Forward + 2 Reverse
- Alternator
  12 V 35 Amp
- Battery
  12 V 88 Ah
- Clutch Type
  Dry Type Single
- Forward Speed
  2.29 – 27.75 kmph
- Reverse Speed
  2.86 – 11.31 kmph
Hydraulics & Brakes
- Lifting Capacity
  1200 Kg
- Tuning Radius with Brakes
  3020 MM
- 3 point Linkage
  ADDC
- Brakes
  DRY DISC Brakes/ OIL IMMERSED Brakes(OPTIONAL)
Dimension & Capacity
- Ground Clearance
  395 MM
- Fuel Tank Capacity
  57 litre
- Wheel Base
  1960 MM
- Overall Width
  1700 MM
- Overall Length
  3650 MM
- Total Weight
  1920 KG
Wheels & Tyres
- Wheel Drive
  2 WD
- Front Tyre Size
  6.00X16
- Read Tyre Size
  12.4X28
Others
- Warranty
  2000 Hours / 2 Year
