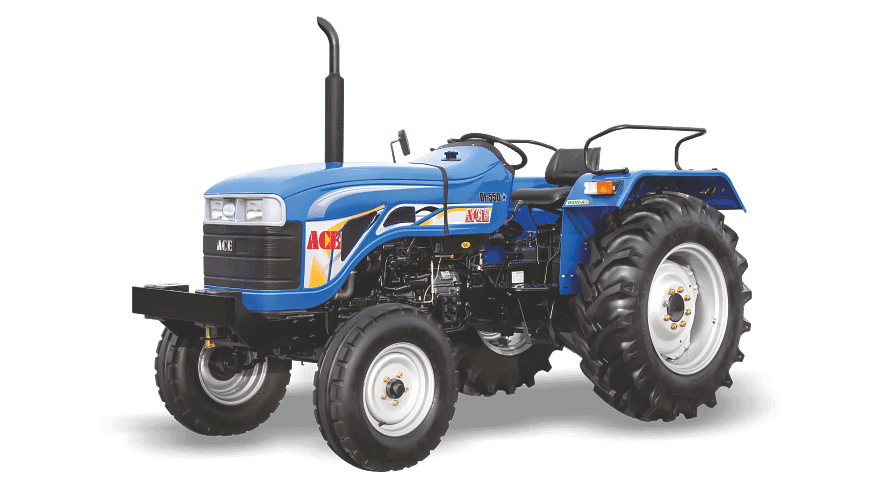

ACE DI-550 STAR

Key Features of ACE DI-550 STAR

• No. Of Cylinder

  3
• Power

  50
• Capacity (cc)

  3120 CC
• PTO Power

  42.5
• Fuel Tank Capacity

  55 litre
• Lifting Capacity

  1800 Kgs
• Wheel Drive

  2 WD

Specifications of ACE DI-550 STAR

• Engine
  • No. Of Cylinder
    3
  • Power
    50
  • Air Filter
    Dry Air Cleaner
  • Capacity (cc)
    3120 CC
  • Engine Rated RPM
    2200 RPM
  • Cooling Type
    Water Cooled

• Power Take Off (PTO) & Steering
  • PTO Power
    42.5
  • Steering Column
    Single Drop Arm
  • PTO RPM
    540

• Transmission
  • Alternator
    12 V 42 Amp
  • Gear Box
    8 Forward + 2 Reverse
  • Clutch Type
    Dual Clutch
  • Battery
    12 V 88 Ah
  • Forward Speed
    2.6 - 34.0 kmph
  • Reverse Speed
    3.6 - 14.3 kmph

• Hydraulics & Brakes
  • Tuning Radius with Brakes
    3450 MM
  • Lifting Capacity
    1800 Kgs
  • 3 point Linkage
    ADDC Live Hydraulics
  • Brakes
    Dry Disc Brakes / Oil Immersed Brakes

• Dimension & Capacity
  • Ground Clearance
    430 MM
  • Fuel Tank Capacity
    55 litre
  • Wheel Base
    2140 MM
  • Overall Length
    3800 MM
  • Overall Width
    1850 MM
  • Total Weight
    2145 KG

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    7.50 x 16
  • Read Tyre Size
    14.9 x 28

• Others
  • Warranty
    2000 Hour / 2 Year
