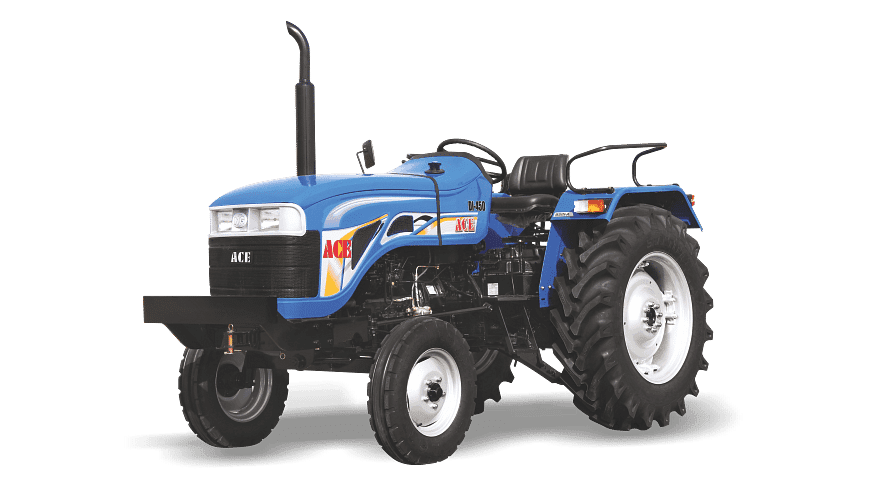

ACE DI-450 NG

Key Features of ACE DI-450 NG

• No. Of Cylinder

  3
• Power

  45
• Capacity (cc)

  2858 CC
• PTO Power

  38.3
• Fuel Tank Capacity

  57 litre
• Lifting Capacity

  1200 / 1800 (Optional)
• Wheel Drive

  2 WD

Specifications of ACE DI-450 NG

• Engine
  • Cooling Type
    Water Cooled
  • No. Of Cylinder
    3
  • Power
    45
  • Capacity (cc)
    2858 CC
  • Engine Rated RPM
    2000 RPM
  • Air Filter
    Dry Air Cleaner

• Power Take Off (PTO) & Steering
  • PTO Power
    38.3
  • PTO RPM
    540 / 1000

• Transmission
  • Clutch Type
    Single / Dual (Optional) Clutch
  • Gear Box
    8 Forward + 2 Reverse
  • Battery
    88 AH 12V
  • Alternator
    12 V 42
  • Forward Speed
    2.51 – 31.91 kmph
  • Reverse Speed
    3.51 – 13.87 kmph

• Hydraulics & Brakes
  • 3 point Linkage
    Draft Piston And Response Control Links
  • Brakes
    Dry Disc Brake / Oil Immersed Brake (Optional)
  • Tuning Radius with Brakes
    3380 MM
  • Lifting Capacity
    1200 / 1800 (Optional)

• Dimension & Capacity
  • Overall Length
    3660 MM
  • Overall Width
    1740 MM
  • Ground Clearance
    425 MM
  • Wheel Base
    1960 MM
  • Fuel Tank Capacity
    57 litre
  • Total Weight
    1950 (With Oil) KG

• Wheels & Tyres
  • Front Tyre Size
    6.00 x 16
  • Read Tyre Size
    13.6 X 28
  • Wheel Drive
    2 WD

• Others
  • Warranty
    2000 Hour / 2 Year
  • Accessories
    Toplink, Tool, Drawbar, Hitch, Hook
